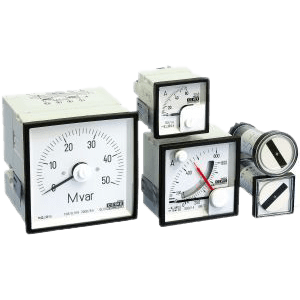

Analogue Panel Instruments
We offer a comprehensive range of analogue and panel instruments for use in control and instrumentation systems. The range includes moving-iron and moving-coil mechanisms in a variety of formats, scales and sizes. All our panel meters are robust, accurate and constructed from high-quality materials to give a long service life. Ammeters, voltmeters and power meters are available with a large range of scales and can be further customised for special applications.
Enquire- Range of standard front panel sizes: 48x48, 72x72 and 96x96 mm
- Range of scales: quadrant (90°), circular (240°) and edgewise
- Options for different mounting positions: horizontal, vertical or angled
- Optional protective coatings and materials for use in tropical environments
- Ingress protection rating IP 54 across the range (option for IP 65)
- Wide temperature range: -25 °C to +50 °C
- Adjustable red markers for meters with quadrant scales
- HV and LV switchgear panels
- Control and relay panels
- Power control centre (PCC) panels
- Motor control centre (MCC) panels
