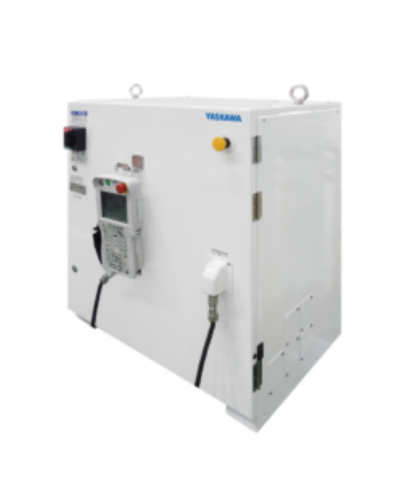

DX100

Controller

Convenient compact flash slot and USB port facilitate memory backups.
Features robust PC architecture & Fast processing speed provides smooth interpolation.
Dynamic interference zones protect robot arm and provide advanced collision avoidance.
Advanced Robot Motion (ARM) control provides high performance, Best-in class path planning dramatically reduces teaching time.
Provides system-level control for robotic workcells.Patented multiple robot control (up to 8 robots/72 axes), as well as I/O devices and communication protocols.
Small, lightweight Windows CE programming pendant features color touch screen with multiple window display capability. Unique cross-shaped navigation cursor reduces teaching time. All operator controls are located on pendant. Program file names can be up to 32 characters long.

Get in touch

1	Manipulator Model – Small Model	SIA5D, SIA10D, SIA20D
2	Manipulator Model – Large Model	SDA5D, SDA10D, SDA20D
3	Dimensions (W x D x H) – Small Model	500 x 580 x 580mm
4	Dimensions (W x D x H) – Large Model	500 x 580 x 880mm
5	Approx. Mass – Small Model	100kg
6	Approx. Mass – Large Model	150kg
7	IEC Protection Class	IP54

1	Number of Controlled Manipulators	Up to 8 manipulators
2	Number of Controlled Axes	Up to 72 axes
3	Number of Simultaneous JOBs – Large Models	16 JOBs
4	Number of Controlled Groups	Up to 32 groups
5	Robot	Up to 8 groups (R1 to R8)
6	Base	Up to 8 groups (B1 to B8)
7	Station	Up to 24 groups (S1 to S24)
8	Programming Capacity	JOB: 200,000 steps, 10,000 instructions
9	CIO Ladder	20,000 steps (max.)
10	I/O	System Input: 2048 (max.) System Output: 2048 (max.)
11	Max. Lenght of JOB Name	Up to 32 digits

S.No.	Catalog Name	Download PDF
1	Technical Catalog	Download
