AC Drive

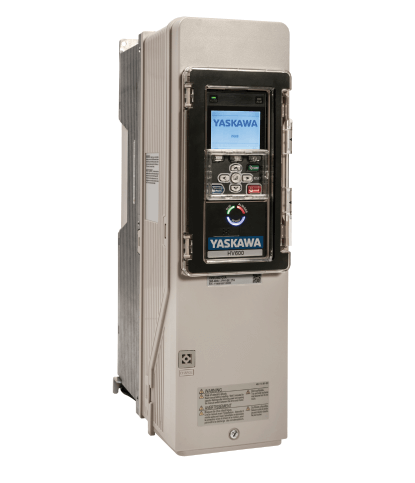

HV600
The HV600 variable-speed drive is engineered for use in HVAC building automation applications requiring reliable motor control. The HV600 features your choice of IP20/UL, IP55/UL, or IP20/Protected Chassis protection classes. Every HV600 comes with HVAC application-specific software that presets a Hand-Off-Auto LCD keypad, a high-visibility Status Ring for quick visual indication of drive status, and a real-time clock for system accuracy.
For HVAC & R - Heating, Ventilation, Airconditioning & Refrigeration
- 480V class: 1.5 to 160kW
Enquire- Simple steps for efficient commissioning
- DriveWizard Mobile app for drive management on smart mobile devices
- Safe programming without main three-phase power
- High visibility Status Ring
- Hand-Off-Auto keypad with LCD display and tactile buttons
- Timer controls for starting, stopping, and speed changes
- Real-time clock for scheduled functions
- Built-in BMS Communication protocol
- Compliance with global certifications and standards
- Emergency Override for occupant safety in fire events
Quick and Easy Set-Up
Simple Operation
Designed for Building Automation
- Built-in 5% impedance reactor for harmonic reduction
- On board EMC/RFI filter for first environment emissions
- Conformal coating for circuit board protection
- IP20/UL, IP55/UL, IP20/Protected Chassis
- -10°C to +60°C ambient
- Side-by-side mounting
- Plenum rated
Building-Friendly Operation
Ease of Installation
- Ventilation Fans
- Cooling Tower Fan
- Secondary Chilled Water/ Primary Chilled Water Pumps
- Condenser Pumps
- Booster Pumps
- Condenser Fans
- Water Cooled Screw Chillers
- Air Cooled Screw Chillers
- Centrifugal Chillers
- Scroll Chillers
