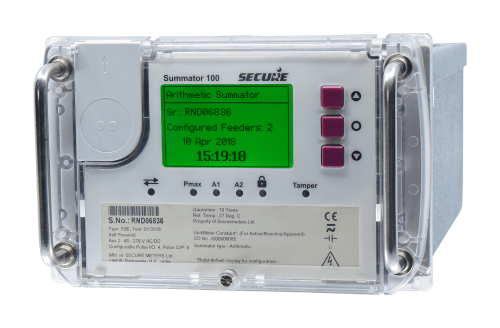

Summator 100
Rack mount, flexible summation and communications
Summator 100 is a digital summation system designed specifically to meet the multi-feeder metering needs of utilities. It uses the robust and accurate platform of Apex 100 meters for feeder metering and enables utilities to measure concurrent demand for multiple feeders. It can be provided as a pre-wired cubicle fitted with summator and feeder meters.
Enquire- Option for dual-auxiliary or self + single-auxiliary power supply Secure communications between summation unit and feeder meters to prevent unauthenticated access
- Supports 10 energy, MD and TOU parameters
- Available in arithmetic, standard and differential summation configurations
- Supports 53 billing dates, 16 day types, 8 TOU energy registers, 8 TOU MD registers, 16 seasons and 30 special days
- Storage of summated high-resolution energy values, up to 9600 parameter days (e.g. 960 days for 10 parameters@ 30-minute interval)
- Simultaneous modbus and DLMS protocol support over ethernet port Field-replaceable battery for RTC, display viewing and meter reading
- Bulk power transfer through multiple feeders, e.g. consumers requiring multi-feeder supply due to either criticality of supply or physical limitations of a single feeder
- Railway traction, radio/TV stations, airports, defence and hospitals, where power is supplied through multiple feeders for reliability and security
- IPP, solar and wind power generation plant
