AC Drive

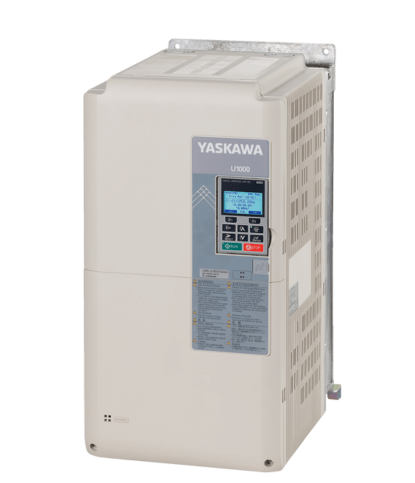

U1000 - Ultra Low Harmonic Drive
Industrial Matrix Drives
The U1000 is a highly efficient AC drive based on Mogu matrix technology. With full power regeneration capability, the U1000 offers great energy-saving potential while sinusoidal input currents and a near unity power factor reduce stress on grid components like transformers and power lines. With a compact footprint, the U1000 is the first choice for innovative, energy-efficient drive solutions with or without power regeneration.
- 3 Phase 200V, 3.7kW to 55kW
- 3 Phase 400V, 2.2kW to 400kW
Ratings:
Enquire- Full Regeneration
- Low Input Distortion Across a Wide Load and Speed Range
- Facilitate IEEE 519 Compliance
- Eco-Mode to Achieve Near Across-the-Line THD
- High-Efficiency Design Provides Extra Energy Savings as Compared to Other Low Harmonic Solutions
- Near Unity True Power Factor at Full Load
- Integrated Input Fusing Provides 100kA SCCR
- Compact Design
- High Reliability with an MTBF of 28 Years
- Embedded Modbus RTU Communications
- Removable Terminal Block
- High Carrier Frequency (Low Motor Noise) Capability
- 0-400 Hz Output Frequency
- 120% Overload for 60 Seconds (ND)
- 150% Overload for 60 Seconds (HD)
- Multi-language LCD Display with Copy function
- Start into Spinning Load (Speed Search)
- Both Induction and Permanent Magnet Motor Control
- Closed or open loop vector control for outstanding regulation, torque production, and position control capability
- Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature
- High-Frequency Injection enables high-precision open loop control of Interior Permanent Magnet Motors
- Fast-acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand
- Communication options for all major industrial networks provide high-speed control and monitoring, reducing installation cost
- DriveWizard Plus computer software and Application Sets for easy configuration
- Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3)
- Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers
- USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
- Made with RoHS-compliant materials
- Parking Solution
- Tower Cranes
- Escalators
- Elevators
- Decanters & Centrifugal separators
- Automatic vertical storage systems
Energy Saving & Low Harmonic
- Press Application
- Pumps
- Cooling towers
- HVAC
- Compressors and many more
